Multi-deck Screening

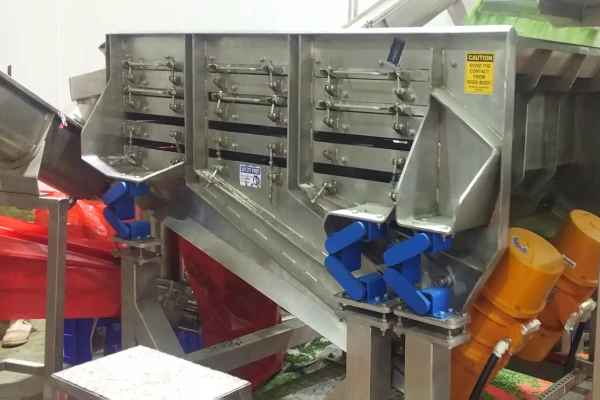

Multi-deck Screening System in the Netherlands
When a single screening stage needs to separate material into several size ranges, a multi-deck screening system provides a practical way to perform multiple classifications in one machine. Different screen openings allow the material to be separated progressively as it moves through the decks.
The system is suitable for raw spices, pulses, extruded snacks, grains, granules and other bulk materials where size-based separation is required. Removable screening decks make it easier to change the screening arrangement according to the product and required classification.
With 3 to 5 screening decks, the machine can handle multiple size fractions in a single operation. Controlled vibration keeps material moving across the screening surfaces and supports steady separation throughout the process.
The equipment is available in SS 304 and SS 304L construction, with lengths of 2.5–3 metres, widths of 500–700 mm and capacities starting from 500 kg and above, depending on bulk density. It can be configured for food and industrial material handling applications in the Netherlands and across Europe.
Multi-deck Screening Details:
- Multiple size classifications in one machine
- 3–5 screening decks
- Accurate material separation
- Removable decks for easier configuration changes
- Space-efficient screening arrangement
- Suitable for continuous operation
- Robust stainless-steel construction
- Suitable for different bulk materials
- Can be integrated with other material handling equipment
Length | 2.5 meter – 3 meters. |
Width | 500 mm – 700 mm |
Capacity | 500 Kg & more, (Depend upon product bulk density.) |
Construction | SS 304, SS 304 L |
Applications | Raw spices, Pulses Extruded snacks |
Voltage | 220 V, 50 HZ |
Didn’t find what you need? Contact us for a custom solution!
Why Choose Us
We deliver reliable, hygienic, and efficient solutions trusted by leading industries. Your success is our priority.
Frequently Asked Questions
A multi-deck screening system uses multiple screening surfaces with different openings to separate material into several size fractions during one screening operation.
The system can be configured with 3 to 5 screening decks, depending on the number of size classifications required for the application.
The system is suitable for raw spices, pulses, extruded snacks, grains, granules and other bulk materials where separation by size is required.
Yes. The removable deck arrangement allows the screening configuration to be changed according to the product, particle size and required classification.
Yes. The system can be configured according to the material, capacity, number of classifications, screen size and production layout and integrated with existing or new material handling lines.
